Pachymeter

The handheld, portable, ophthalmic biometer to take central and peripheral measurements where no other pachymeter can.

GET MORE INFO

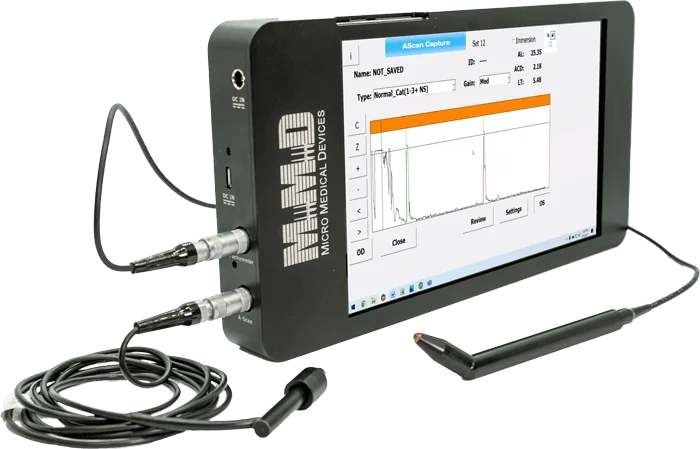

A black medical diagnostic device with a touchscreen displaying a data graph and medical readings, connected to cables and a pen-like sensor. The device is labeled Micro Medical Devices.

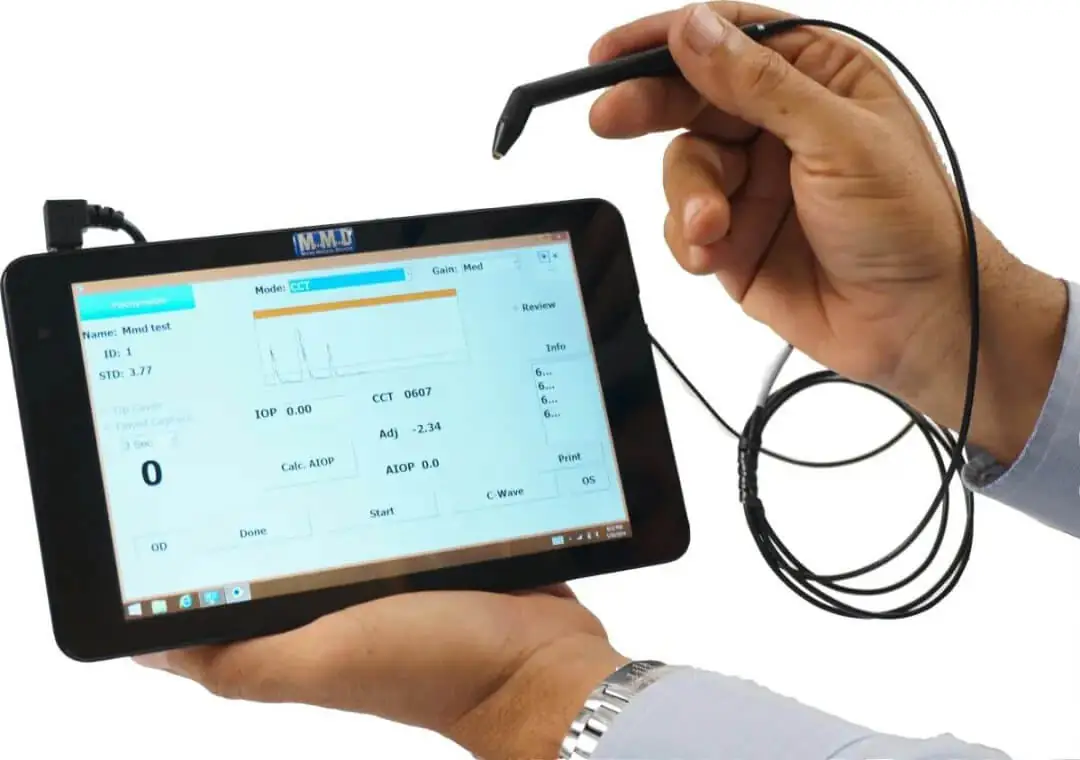

A person holds a digital tablet displaying technical data, using a connected stylus or probe device, suggesting usage for measurements or diagnostics.

Why Do You Need a Pachymeter?

A pachymeter is a probe that measures the thickness of the cornea at any point, creating a map that can be used for multiple applications. Pachymetry data can be used in glaucoma management to estimate the effect of corneal thickness on IOP and in screening for corneal abnormalities like keratoconus and in the planning of Limbal Relaxing Incisions (LRIs). It is also used in pre-surgical exams for cataract and refractive surgery patients, adding advanced precision and improving outcomes.

GET MORE INFO

Benefits of Pachymeter by Micro Medical Devices

White icon of a person in a tie holding up a cloud with a gear and a double-headed arrow inside, on a blue circular background.

PERIPHERAL MEASUREMENTS

The MMD Pachymeter can take precise measurements from both central and peripheral regions of the cornea

White icon of three people with a plus sign on a blue circular background, symbolizing adding users or members to a group.

System Compatibility

MMD Pachymeter probe is compatible with a PalmScan USB, tablet, and PalmScan Pro

A white outline of an eye with radiating lines, symbolizing vision or awareness, is centered on a blue circular background.

Safe, Disposable Tips

Compatible with our proprietary, single-use Pachy Tips, simplifying the cleaning process, lowering risk of damage to the probe, and making corneal thickness measurement safer

White line drawing of five people in professional attire, including lab coats and stethoscopes, standing together on a blue circular background.

Corneal Mapping

In CMAP Mode, the MMD Pachymeter creates a corneal map from 17 different measured points

A blue circular icon featuring a white outline of a hand holding a shield with a check mark, symbolizing security, protection, or safety.

Record Accuracy

An industry-leading sampling frequency of 264 MHz and a probe of 50 MHz improve measurement accuracy

White line drawing of a sheet of paper with horizontal lines and a pencil icon, centered on a blue circular background.

Ease of Interpretation

Reports are easy to export in a PDF, view, and interpret for clinical decision making

White calculator icon with rectangular display and buttons, centered on a circular blue background.

LRI

Capable of providing measurements used to plan a Limbal Relaxing Incision (LRI) procedure to alleviate corneal astigmatism.

A circular blue background with a white crosshair pattern, including horizontal and vertical lines intersecting at the center, and shorter tick marks along each line.

DSAEK

Unlike other pachymeters, ours is precise down to 75 microns, making it ideal for use when planning and performing DSAEK procedures.

Why Our Portable Pachymeter?

Our portable pachymeter, with a 3-micron measurement of accuracy and 50 MHz probe, provides some of most accurate measurements available today. This technology allows doctors to verify accuracy by displaying the measured echogram of the cornea with each measurement. It is easy to use and integrates with any of our PalmScan systems — USB, Tablet, and PalmScan Pro. The probe is compatible with our proprietary Pachy Tips, making this device safer and easier to use than others on the market.

The pachymeter has the ability to accurately measure the peripheral cornea. These measurements can be used in our LRI calculator to plan a Limbal Relaxing Incision (LRI) to alleviate corneal astigmatism.

GET MORE INFO

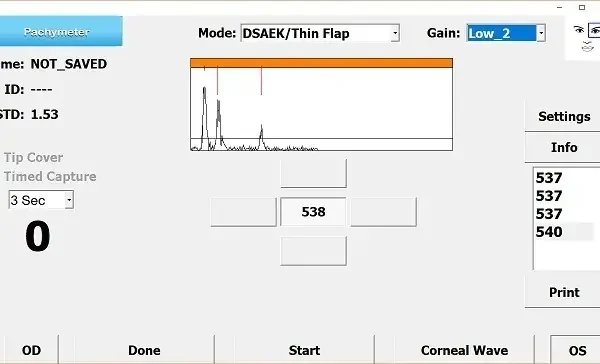

Screenshot of a pachymeter interface displaying DSAEK/Thin Flap mode, Low_2 gain, measurement 538, and a graph. Other numbers shown are 537, 537, 537, and 540. Timer is set to 3 seconds.

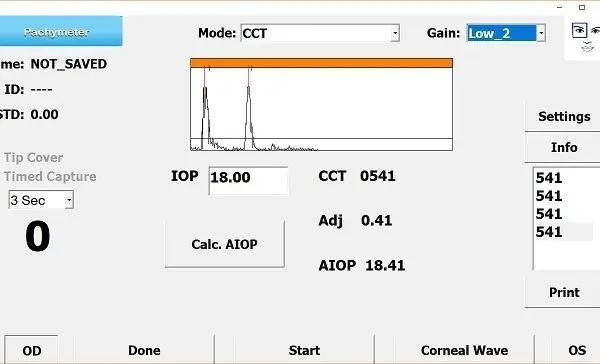

A medical software interface for a pachymeter, showing CCT mode, IOP at 18.00, CCT at 0541, AIOP at 18.41, and settings options on the right. A small chart and measurement details are displayed.

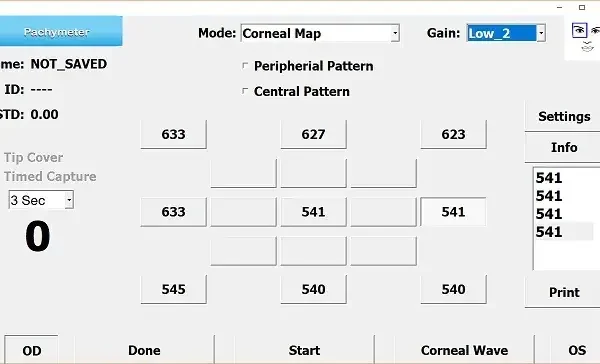

A screenshot of a pachymeter software interface showing corneal map mode, with various numerical readings in a grid, settings on the right, and options for name, ID, and time capture interval at the top left.

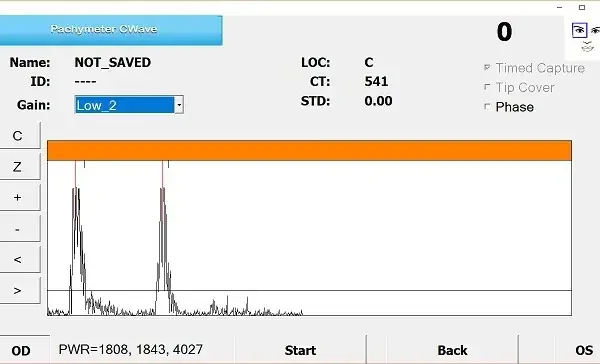

Screenshot of a Pachymeter CWave software interface showing a graph with peaks, measurement settings, patient info, and options for timed capture, tip cover, and phase on the right side. Displayed gain is Low_2.

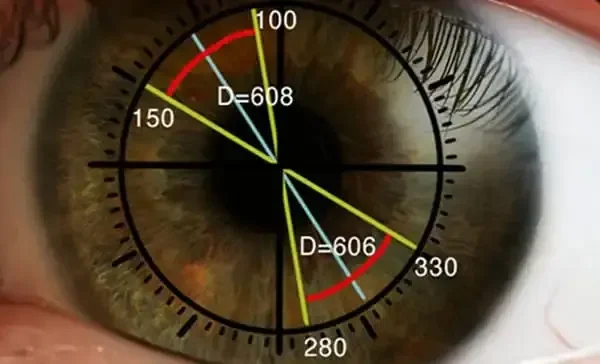

A close-up of a brown eye with overlaid angle measurements, lines, and numbers marking 100, 150, 280, and 330 degrees, as well as two distances labeled D=608 and D=606.

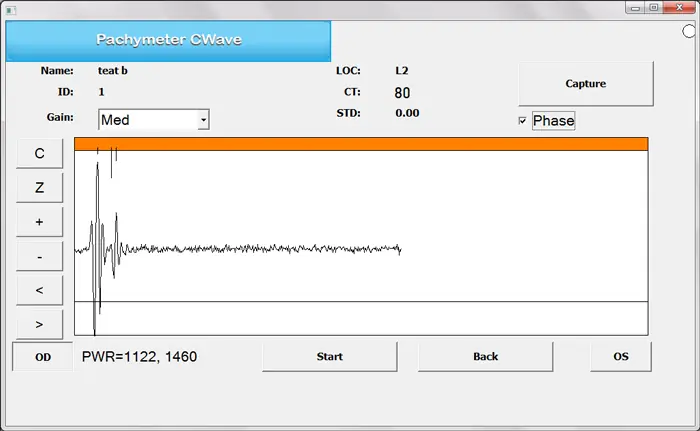

A computer screen shows a Pachymeter CWave interface with measurement data, a waveform graph, and controls for gain, phase, start, and capture. The power readings PWR=1122, 1460 appear at the bottom.

Check Out the DSAEK Module!

When the thickness of the corneal bed can make all the difference in certain types of corneal transplants, you need the most precise tools to guarantee success. Unlike other pachymeters that can measure down to 150-120 microns, ours is precise down to 75 microns.

Because it’s easily transportable and compatible with sterile probe tips, our pachymeter is a perfect tool to get the most precise measurements before and during the DSAEK procedure!

GET MORE INFO
